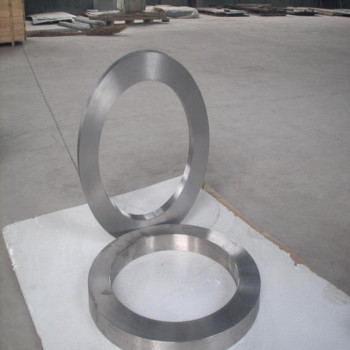

Grade 5 titanium ring used in oil industry with big OD size

group name: Titanium Rings

Min Order: 1 kilogram

brand name: MMR Parts Processing | Custom Parts Manufacturing

Nearest port for product export: shanghai, tianjin, xi'an

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union, Cash

update time: Thu, 21 Nov 2024 16:50:02 GMT

contact supplier

Paramtents

Grade Gr1, Gr2, Gr3, Gr4,Gr5,Gr7,Gr9,Gr12
OD 200～1300mm
ID 100-900mm
Technology Forged, Cold-Rolled, Machining
Condition, Hot rolled(R), Annealed (M) Annealed (M)
Surface Pickling surface, machined surface, sandblast sur
Specifications Aerospace, Chemical Industryl, Industrial

Packging & Delivery

Min Order1 kilogram

Briefing

We supply titanium rings good quality, and our company is the best place to buy titanium rings.

Detailed

We have been in titanium forging process field for many years, so we know how to make a titanium ring .And we also can supply cheap & polished titanium rings. All of our materials will be strictly inspected and the quality is guaranteed . And we will supply materials test certificates after goods finished. The following infos are detailes about our materials.

Grade	Gr1, Gr2, Gr3, Gr4, Gr5，Gr7，Gr9，Gr12，Gr23
Standard	ASTMB381
Technology	Hot-Rolled, Cold-Rolled, Machining
Surface	Pickling surface, Polished surface, sandblasted surface
Specifications	Aerospace, Chemical Industry , Industrial

Chemical composition

Grade

Chemical composition, weight percent (%)

≤

Other Elements

Max. each

Other Elements

Max. total

Gr1

0.08

0.18

0.03

0.015

0.20

—

0.1

0.4

Gr2

0.08

0.25

0.03

0.015

0.30

—

0.1

0.4

Gr3

0.08

0.35

0.05

0.0015

0.30

—

0.1

0.4

Gr4

0.08

0.25

0.03

0.015

0.30

—

0.1

0.4

Gr5

0.08

0.20

0.05

0.015

0.40

5.5～6.75

3.5～4.5

—

0.1

0.4

Gr7

0.08

0.25

0.03

0.015

0.30

—

0.12～0.25

—

0.1

0.4

Gr9

0.08

0.15

0.03

0.015

0.25

2.5～3.5

2.0～3.0

—

0.1

0.4

Gr12

0.08

0.30

0.03

0.015

0.30

—

0.6～0.9

0.2～0.4

0.1

0.4

Gr23

0.08

0.13

0.03

0.0125

0.25

5.5～6.5

3.5～4.5

—

0.1

0.4

Physical properties

Grade	Physical properties
	Tensile strength Min		Yield strength (0.2%, offset)				Elongation in 50mm Min (%)
	ksi	MPa	Min		Max
	ksi	MPa	ksi	MPa	ksi	MPa
Gr1	35	240	20	138	45	310	24
Gr2	50	345	40	275	65	450	20
Gr3	65	450	55	380	80	550	18
Gr4	80	550	70	483	95	655	15
Gr5	130	895	120	828	—	—	10
Gr7	50	345	40	275	65	450	20
Gr9	90	620	70	483	—	—	15
Gr12	70	483	50	340	—	—	18
Gr23	120	828	110	759	—	—	10

Tolerance (mm)

OD	Tolerance	ID	Tolerance	Thickness	Tolerance
200～400	+3 -1	100～300	+1 -3	35～120	+3 -1
401～700	+4 -2	150～300	+2 -4	40～160	+4 -2
701～900	+5 -3	300～700	+3 -5	50～180	+5 -3
901～1300	+6 -3	400～900	+3 -6	70～250	+6 -3

Testing :

Chemical composition test，

Physical properties test，

Appearance defects inspection，

Ultrasonic flaw detection，

Eddy current testing，

Macroscopic examination.

Application :

Aerospace, Industry, Navigation, artifical bones;

Textile printing and dyeing;

Sporting products;

Electroplating equipment;

Machining field, Automobile field;

Axis machining, the frame of the planes;

The equipment used in the sea water;

Heat exchangers and condensers;

Construction industry etc.

Features :

High tensile strength;

High corrosion resistance;

Low density, good thermal stability;

Non-ferromagnetic;

Good bio-compatibility;

High temperature and low temperature resistance;

High resistance to strong acid and strong alkali and so on.

What we can do for you?

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
