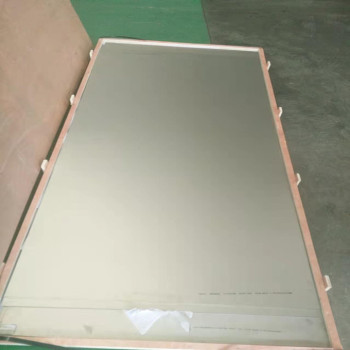

Hot rolled pure titanium sheet widely used for making tank

group name: Titanium Flat Plates

Min Order: 1 kilogram

brand name: MMR Parts Processing | Custom Parts Manufacturing

Nearest port for product export: shanghai, tianjin, xi'an

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union, Cash

update time: Thu, 21 Nov 2024 17:05:07 GMT

contact supplier

Paramtents

Grade Gr1, Gr2, Gr3,Gr4,
Thickness 0.5mm - 60mm
Width 400mm - 3000mm
Length ≤6000mm
Technology Cold-Rolled，Hot rolled(R), Annealed (M)
Condition Cold rolled(Y), Hot rolled(R), Annealed (M)
Surface pickling surface，polished surface，
Specifications Medical, Industrial,Aerospace

Packging & Delivery

Min Order1 kilogram

Briefing

We do customized size titanium plate We have a large of titanium sheet metal in stock. Our titanium plate price is good.

Detailed

All of our titanium plates we have been strictly inspected and the quality is guaranteed. We provide polished titanium sheet treatment and cutting titanium sheet services. The following are detail informations about our titanium sheets.

Grade	Gr1, Gr2, Gr3, Gr4,
Standard	ASTMB265,ASTMF67
Thickness	0.5mm - 50 mm
Width	10mm - 2500mm
Length	≤6000mm
Technology	Hot-Rolled, Cold-Rolled, Hot forging , Machining
Condition	Cold rolled(Y), Hot rolled(R), Annealed (M), Quenching(C)
Surface	Pickling surface, Polished surface, Black surface
Specifications	Aerospace, Medical, Industrial

Chemical composition

Grade

Chemical composition, weight percent (%)

≤

Other Elements

Max. each

Other Elements

Max. total

Gr1

0.08

0.18

0.03

0.015

0.20

—

0.1

0.4

Gr2

0.08

0.25

0.03

0.015

0.30

—

0.1

0.4

Gr3

0.08

0.35

0.05

0.0015

0.30

—

0.1

0.4

Gr4

0.08

0.25

0.03

0.015

0.30

—

0.1

0.4

Physical properties

Grade	Physical properties
	Tensile strength Min		Yield strength (0.2%, offset)				Elongation in 50mm Min (%)
	ksi	MPa	Min		Max
	ksi	MPa	ksi	MPa	ksi	MPa
Gr1	35	240	20	138	45	310	24
Gr2	50	345	40	275	65	450	20
Gr3	65	450	55	380	80	550	18
Gr4	80	550	70	483	95	655	15

Tolerance (mm)

Thickness	Width tolerance
Thickness	400~1000	1000~2000	＞2000
5.0～6.0	±0.35	±0.40	±0.60
6.0～8.0	±0.40	±0.60	±0.80
8.0～10.0	±0.50	±0.60	±0.80
10.0～15.0	±0.70	±0.80	±1.00
15.0～20.0	±0.70	±0.90	±1.20
20.0～30.0	±0.90	±1.00	±1.20
30.0～40.0	±1.10	±1.20	±1.50
40.0～50.0	±1.20	±1.50	±2.00
50.0～60.0	±1.60	±2.00	±2.50

Testing :

Chemical composition test

Physical properties test

Appearance defects inspection

Ultrasonic flaw detection

Eddy current testing

Application :

Chemical processing, medical instruments;

Aerospace, Industry, Navigation, Smelting;

Textile printing and dyeing;

Petrochemical industry;

Electroplating equipment;

Machining field, Automobile field;

Axis machining, the frame of the planes;

The equipment used in the sea water;

Nuclear industry;

Heat exchangers and condensers;

Construction industry etc.

Features :

High tensile strength;

High corrosion resistance;

Low density, good thermal stability;

Non-ferromagnetic;

Good bio-compatibility;

High temperature and low temperature resistance;

High resistance to strong acid and strong alkali and so on.

What we can do for you?

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
