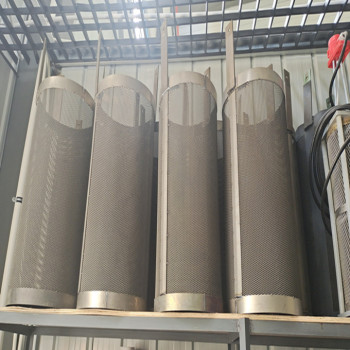

Titanium mesh basket for chemical industry

group name: Titanium Meshes

Min Order: 1 sheet

brand name: MMR Parts Processing | Custom Parts Manufacturing

Nearest port for product export: shanghai, tianjin, xi'an

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union, Cash

update time: Thu, 21 Nov 2024 18:23:55 GMT

contact supplier

Paramtents

Grade Gr1, Gr2, Gr3，Gr12
Thickness 0.5mm - 3.0mm
Width 400mm - 1200mm
Length ≤2000mm
Hole Size 3x6mm, 12.5x4.5mm
Condition Cold rolled(Y), Hot rolled(R), Annealed (M)
Surface Pickling surface, Black surface
Specifications Chemical Industry, Metal refining, Industrial

Packging & Delivery

Min Order1 sheet

Briefing

We are titanium basket manufacturer, our titanium basket can be used for titanium anode mesh.

Detailed

Our titanium mesh basket has widely used in chemical industry.titanium baskets electroplating and titanium baskets for plating .The following are detailed information about our materials.

Grade	Gr1, Gr2, Gr3, Gr12,
Standard	ASTMB265,ASTM F67
Thickness	0.5mm - 3.0mm
Width	400mm - 1200mm
Length	≤2000mm
Hole Size	3x6mm,12.5x4.5mm
Condition	Cold rolled(Y), Hot rolled(R), Annealed (M), Quenching(C)
Surface	Pickling surface, Black surface
Specifications	Aerospace, Medical, Industrial

Chemical composition

Grade

Chemical composition, weight percent (%)

≤

Other Elements

Max. each

Other Elements

Max. total

Gr1

0.08

0.18

0.03

0.015

0.20

—

0.1

0.4

Gr2

0.08

0.25

0.03

0.015

0.30

—

0.1

0.4

Gr3

0.08

0.35

0.05

0.015

0.30

—

0.1

0.4

Gr12

0.08

0.25

0.03

0.015

0.30

—

0.6～0.9

0.2～0.4

0.1

0.4

Physical properties

Grade	Physical properties
	Tensile strength Min		Yield strength (0.2%, offset)				Elongation in 50mm Min (%)
	ksi	MPa	Min		Max
	ksi	MPa	ksi	MPa	ksi	MPa
Gr1	35	240	20	138	45	310	24
Gr2	50	345	40	275	65	450	20
Gr3	65	450	55	380	80	550	18
Gr12	70	480	50	345	—	—	18

Tolerance (mm)

Thickness	tolerance	Width	tolerance	Length	tolerance
0.5	±0.05	400～1200	+15～0	<2000	+20～0
0.6-0.9	±0.07
1.0-1.5	±0.09
1.6-3.0	±0.12

Testing :

Chemical composition test,

Physical properties test,

Appearance defects inspection,

Eddy current testing.

Application :

Chemical processing, electroplating;

Plating ; in petroleum industry

Acid and alkali environment,

Chemical fiber industrial,

Pickling in electroplating industrial,

Food, medicine, machinery manufacturing .

Features :

High tensile strength;

High corrosion resistance;

Low density, good thermal stability;

Non-ferromagnetic;

Good bio-compatibility;

High temperature and low temperature resistance;

High resistance to strong acid and strong alkali and so on.

What we can do for you?

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
