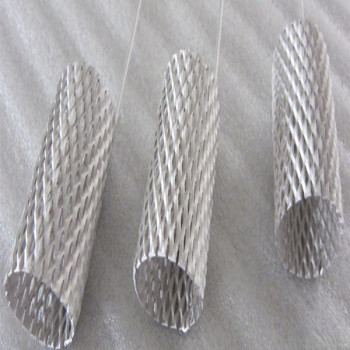

3μm Platinized Titanium Anodes

group name: Platinized Titanium Anodes

Min Order: 1 sheet

brand name: MMR Parts Processing | Custom Parts Manufacturing

Nearest port for product export: shanghai, tianjin, xi'an

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union, Cash

update time: Tue, 04 Nov 2025 17:29:49 GMT

contact supplier

Paramtents

Grade Gr1,Gr2 with 3μmPlatinum coating
Thickness 0.5mm - 5mm
Width 400mm - 1500mm
Length ≤3000mm
Technology Cold-Rolled，coating, Annealed (M)
Surface pickling surface，Coating surface，Black sruface
Specifications Chemica industryl ,HHO generator,Plating

Packging & Delivery

Min Order1 sheet

Briefing

We do mmo titanium anode for many years, and we make customized platinum titanium amode according to customer request.

Detailed

We are platinized titanium anode supplier.All of our platinized coated titanium anode will be strictly inspected and the quality is guaranteed. We provide platinium titanium anaode. We can produce different shapes. platinum content is 12 g / ㎡ / mu m, platinum layer more thhan 3 microns.The following are detailed informations about our products.

Grade	Gr1, Gr2
Thickness	0.5mm - 5mm
Width	≤1000mm
Length	≤3000mm
Technology	Hot-Rolled, Cold-Rolled, Coating.
Condition	Cold rolled(Y), Hot rolled(R), Annealed (M),
Surface	Pickling surface, Coating surface, Black surface

Chemical composition

Grade

Chemical composition, weight percent (%)

≤

Other Elements

Max. each

Other Elements

Max. total

Gr1

0.08

0.18

0.03

0.015

0.20

—

0.1

0.4

Gr2

0.08

0.25

0.03

0.015

0.30

—

0.1

0.4

Physical properties

Grade	Physical properties
	Tensile strength Min		Yield strength (0.2%, offset)				Elongation in 50mm Min (%)
	ksi	MPa	Min		Max
			ksi	MPa	ksi	MPa
Gr1	35	240	20	138	45	310	24
Gr2	50	345	40	275	65	450	20

Tolerance (mm)

Thickness	Width tolerance
Thickness	400~1000	—	—
0.5～0.8	±0.05	—	—
0.9～1.5	±0.07	—	—
1.6～2.0	±0.09	—	—
2.1～3.0	±0.15	—	—

Testing :

Chemical composition test

Physical properties test

Appearance defects inspection

Eddy current testing

Application :

Electrolyzed ionized water,

Electroplating,

Oxidizing acid potential water,

HHO generator and other fields.

Features :

The platinum electrode has strong corrosion resistance and high catalytic activity.

With the characteristics of high oxygen evolution potential and low hydrogen evolution potential, it is not only an anode material with excellent performance, but also a cathode material with excellent performance.

High current efficiency, corrosion resistance, can be reversed.

The Pt layer has good ductility, so that the anode has a good bonding force.

What we can do for you?

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
