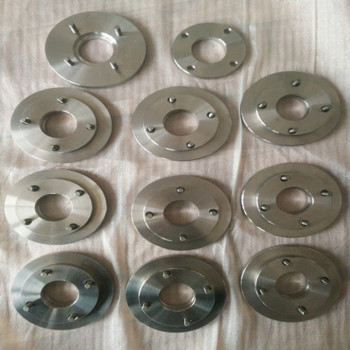

Gr2 titanium cnc parts with precision handling and dimensions

group name: Titanium Machined Parts

Min Order: 1 unit

brand name: MMR Parts Processing | Custom Parts Manufacturing

Nearest port for product export: shanghai, tianjin, xi'an

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union, Cash

update time: Thu, 21 Nov 2024 18:44:51 GMT

contact supplier

Paramtents

Grade Gr1, Gr2, Gr3, Gr4,Gr5,Gr7,Gr9,Gr12
Diameter according to drawing
Standard according to customer request
Technology Hot forging, cold rolling, Machining
Surface mechined surface, bright surface,Black surface
Specifications Aerospace, Environmental protection ， Industrial

Packging & Delivery

Min Order1 unit

Briefing

We are titanium parts manufacturing,and we do cnc machining titanium parts for many years.

Detailed

We are titanium cnc parts manufacture . and we always produce mechined titanium parts accroding to customer requirement .The following are the informations about our titanium parts grade .

Grade	Gr1, Gr2, Gr3, Gr4, Gr5，Gr7，Gr9，Gr12,Gr23
Standard	according to customer requirement
Diameter	according to drawing
Technology	Hot-forging, Machining
Surface	bright surface, machined surface, Black surface,pickling surface
Specifications	Aerospace, Medical, Industrial

Chemical composition

Grade

Chemical composition, weight percent (%)

≤

Other Elements

Max. each

Other Elements

Max. total

Gr1

0.08

0.18

0.03

0.015

0.20

—

0.1

0.4

Gr2

0.08

0.25

0.03

0.015

0.30

—

0.1

0.4

Gr3

0.08

0.35

0.05

0.0015

0.30

—

0.1

0.4

Gr4

0.08

0.25

0.03

0.015

0.30

—

0.1

0.4

Gr5

0.08

0.20

0.05

0.015

0.40

5.5～6.75

3.5～4.5

—

0.1

0.4

Gr7

0.08

0.25

0.03

0.015

0.30

—

0.12～0.25

—

0.1

0.4

Gr9

0.08

0.15

0.03

0.015

0.25

2.5～3.5

2.0～3.0

—

0.1

0.4

Gr12

0.08

0.30

0.03

0.015

0.30

—

0.6～0.9

0.2～0.4

0.1

0.4

Gr23

0.08

0.13

0.03

0.0125

0.25

5.5～6.5

3.5～4.5

—

0.1

0.4

Physical properties

Grade	Physical properties
	Tensile strength Min		Yield strength (0.2%, offset)				Elongation in 50mm Min (%)
	ksi	MPa	Min		Max
	ksi	MPa	ksi	MPa	ksi	MPa
Gr1	35	240	20	138	45	310	24
Gr2	50	345	40	275	65	450	20
Gr3	65	450	55	380	80	550	18
Gr4	80	550	70	483	95	655	15
Gr5	130	895	120	828	—	—	10
Gr7	50	345	40	275	65	450	20
Gr9	90	620	70	483	—	—	15
Gr12	70	483	50	340	—	—	18
Gr23	120	828	110	759	—	—	10

Testing :

Chemical composition test,

Physical properties test,

Appearance defects inspection,

Dimensional tolerance check。

Application :

Bicycle, motorcycle, automobile,

Racing car, yacht, sports, electronics,

Pharmaceutical, petroleum, metallurgy,

Chemical, seawater desalination,

Ocean engineering,

Construction and other industries.

Features :

High tensile strength;

High corrosion resistance;

Low density, good thermal stability;

Non-ferromagnetic;

Good bio-compatibility;

High temperature and low temperature resistance;

High resistance to strong acid and strong alkali and so on.

What we can do for you?

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
