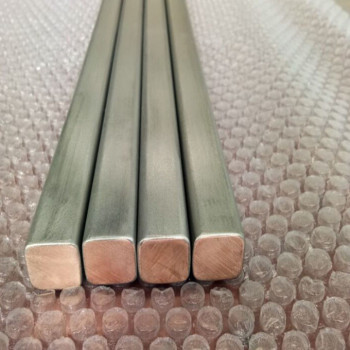

Titanium clad copper bar for electrolysis&electroplating industry use with good delivery

group name: Titanium-clad Copper Bars

Min Order: 1 kilogram

brand name: MMR Parts Processing | Custom Parts Manufacturing

Nearest port for product export: shanghai, tianjin, xi'an

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union, Cash

update time: Thu, 21 Nov 2024 18:03:08 GMT

contact supplier

Paramtents

Base Materials Pure copper
Clad material CP titanium, Titanium alloy
Shape Square, Round, Rectangular, Flat
Size according to customer request
Technology Rolled, Extrude, Stretching
Condition Cold rolled(Y), Hot rolled(R), BM
Specifications Electroplating, Electrolysis,l, Industrial

Packging & Delivery

Min Order1 kilogram

Briefing

We supply high quality titanium clad copper rod many years. titanium copper composite materials has widely used in industry.

Detailed

AS a titanium clad copper bar manufacture,We can make grade 2 titanium rod with copper composite accordidng to customer size . The following are detail informations we always produce.

Here we have four production methods of titanium-copper composite rods are presented: hot extrusion method, hot extrusion + stretching method, explosion method, explosion + rolling method.

Cladding materials: titanium Ti, zirconium Zr, nickel Ni, stainless steel (304, 316L), etc.

Multilayer thickness: conventional 1.0～2.5mm

Main section shape and size range (mm):

Rectangular width (20～150)×thickness (6～30)

Round type Φ(8～50)

Square type side length (10～30)

Wire Φ(2.0～8.0)

Testing :

Chemical composition test,

Appearance defects inspection,

Tolerance detection.

Application :

Electrolysis, electroplating,

Electrolysis,PCB

Hydrometallurgy, power

Chemical industry,

Water treatment,

Ocean engineering, etc.

Features :

Low processing costs，

Big area of composite materials available with excellent metallurgical bonding by explosive welding process.

Copper Core and Great weldability for connecting, capping and joining,

Fantastic corrosion resistance in strongly corrosive solutions due to outside Titanium layer.

Excellent conductivity and fully ductile for shaping and forming due to OFHC (Oxygen-Free High Conductivity).

What we can do for you?

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
