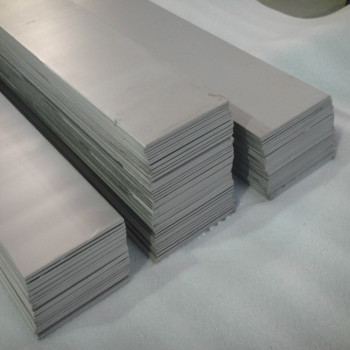

High palladium content cp titanium sheet with annealed state for anti-corrosion industry

group name: Titanium Flat Plates

Min Order: 1 kilogram

brand name: MMR Parts Processing | Custom Parts Manufacturing

Nearest port for product export: shanghai, tianjin, xi'an

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union, Cash

update time: Thu, 21 Nov 2024 16:35:28 GMT

contact supplier

Paramtents

Grade Gr5, Gr7, Gr9，Gr12, Gr23
Thickness 0.5mm - 50 mm
Width 10mm - 2000mm
Length ≤3000mm
Technology Hot-Rolled, Cold-Rolled, Hot forging , Machining
Condition Cold rolled(Y), Hot rolled(R), Annealed (M)
Surface Pickling surface, Polished surface, Black surface
Specifications Aerospace, Medical, Industrial

Packging & Delivery

Min Order1 kilogram

Briefing

We can supply diffrent titanium sheet grades in stock, and out titanium metala sheet price is very good.

Detailed

As a titanium sheet supplier,our titanium sheet have been strictly inspected and the quality is guaranteed. our hot sell materials size are :1mm titanium sheet, 3mm titanium sheet,5mm titanium sheet.The following are detail informations about our titanium plates.

Grade	Gr5, Gr7, Gr9, Gr12, Gr23
Standard	ASTMB265,ASTM F136,AMS4906,AMS4911
Thickness	0.5mm - 50 mm
Width	10mm - 2000mm
Length	≤3000mm
Technology	Hot-Rolled, Cold-Rolled, Hot forging , Machining
Condition	Cold rolled(Y), Hot rolled(R), Annealed (M), Quenching(C)
Surface	Pickling surface, Polished surface, Black surface
Specifications	Aerospace, Medical, Industrial

Chemical composition

Chemical composition, weight percent (%)

Grade

≤

Other Elements

Max. each

Other Elements

Max. total

Gr5

0.08

0.20

0.05

0.015

0.40

3.5～4.5

—

0.1

0.4

Gr7

0.08

0.25

0.03

0.015

0.30

—

0.12～0.25

—

0.1

0.4

Gr9

0.08

0.35

0.02

0.015

0.25

2.5～3.5

2.0～3.0

—

0.1

0.4

Gr12

0.08

0.25

0.03

0.015

0.30

—

0.6～0.9

0.2～0.4

0.1

0.4

Gr23

0.08

0.13

0.03

0.125

0.25

5.5-6.75

3.5～4.5

—

0.1

0.4

Physical properties

Grade	Physical properties
	Tensile strength Min		Yield strength (0.2%, offset)				Elongation in 50mm Min (%)
	ksi	MPa	Min		Max
	ksi	MPa	ksi	MPa	ksi	MPa
Gr5	130	895	120	828	—	—	10
Gr7	50	345	40	275	65	450	20
Gr9	90	620	70	483	—	—	15
Gr12	70	483	50	348	—	—	18
Gr23	120	828	110	759	—	—	10

Tolerance (mm)

Thickness	Width tolerance
Thickness	400~1000	1000~2000	＞2000
5.0～6.0	±0.35	±0.40	±0.60
6.0～8.0	±0.40	±0.60	±0.80
8.0～10.0	±0.50	±0.60	±0.80
10.0～15.0	±0.70	±0.80	±1.00
15.0～20.0	±0.70	±0.90	±1.20
20.0～30.0	±0.90	±1.00	±1.20
30.0～40.0	±1.10	±1.20	±1.50
40.0～50.0	±1.20	±1.50	±2.00
50.0～60.0	±1.60	±2.00	±2.50

Features :

High tensile strength;

High corrosion resistance;

Low density, good thermal stability;

Non-ferromagnetic;

Good bio-compatibility;

High temperature and low temperature resistance;

High resistance to strong acid and strong alkali and so on.

Application :

Chemical processing, medical instruments;

Aerospace, Industry, Navigation, Smelting;

Textile printing and dyeing;

Petrochemical industry;

Electroplating equipment;

Machining field, Automobile field;

Axis machining, the frame of the planes;

The equipment used in the sea water;

Nuclear industry;

Heat exchangers and condensers;

Construction industry etc.

Testing :

Chemical composition test,

Physical properties test,

Appearance defects inspection,

Ultrasonic flaw detection,

Eddy current testing.

What we can do for you?

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
