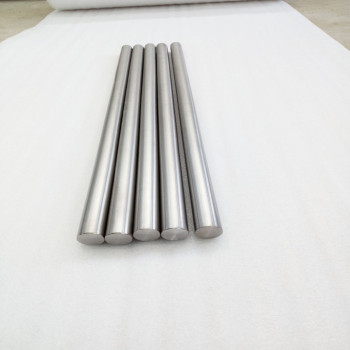

Grade 2 titanium rod medical use with diameter h8 tolerance for sale

group name: Titanium Round Bars

Min Order: 1 kilogram

brand name: MMR Parts Processing | Custom Parts Manufacturing

Nearest port for product export: shanghai, tianjin, xi'an

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union, Cash

update time: Thu, 21 Nov 2024 20:04:33 GMT

contact supplier

Paramtents

Grade Gr1, Gr2, Gr3, Gr4,
Diameter 0.5mm - 50 mm
Length ≤6000mm
Technology Hot-Rolled, Cold-Rolled, Hot forging , Machining
Condition Cold rolled(Y), Hot rolled(R), Annealed (M)
Surface Pickling surface, Polished surface, Black surface
Specifications Aerospace, Medical, Industrial

Packging & Delivery

Min Order1 kilogram

Briefing

We are titanium rod distributor,we offer titanium grade 2 rod in stock with cutting service.

Detailed

AS a titanium rod manufacture,We can produce 6mm titanium rod , 12mm titanium rod.All our materials we have been strictly inspected and the quality is guaranteed. You can buy titanium rod from our stock with good services. The following are detail informations about our titanium materials.

Grade	Gr1, Gr2, Gr3, Gr4,
Standard	ASTMB348,ASTM F67
Diameter	5mm - 250 mm
Length	≤6000mm
Technology	Hot-Rolled, Cold-Rolled, Hot forging , Machining
Condition	Cold rolled(Y), Hot rolled(R), Annealed (M), Quenching(C)
Surface	Pickling surface, Polished surface, Black surface
Specifications	Aerospace, Medical, Industrial

Chemical composition

Grade

Chemical composition, weight percent (%)

≤

Other Elements

Max. each

Other Elements

Max. total

Gr1

0.08

0.18

0.03

0.015

0.20

—

0.1

0.4

Gr2

0.08

0.25

0.03

0.015

0.30

—

0.1

0.4

Gr3

0.08

0.35

0.05

0.0015

0.30

—

0.1

0.4

Gr4

0.08

0.25

0.03

0.015

0.30

—

0.1

0.4

Physical properties

Grade	Physical properties
	Tensile strength Min		Yield strength (0.2%, offset)				Elongation in 50mm Min (%)
	ksi	MPa	Min		Max
	ksi	MPa	ksi	MPa	ksi	MPa
Gr1	35	240	20	138	45	310	24
Gr2	50	345	40	275	65	450	20
Gr3	65	450	55	380	80	550	18
Gr4	80	550	70	483	95	655	15

Tolerance (mm)

Thickness	Width tolerance
Thickness	400~1000	1000~2000	＞2000
5.0～6.0	±0.35	±0.40	±0.60
6.0～8.0	±0.40	±0.60	±0.80
8.0～10.0 ±0.50	±0.50	±0.60	±0.80
10.0～15.0	±0.70	±0.80	±1.00
15.0～20.0	±0.70	±0.90	±1.20
20.0～30.0	±0.90	±1.00	±1.20
30.0～40.0	±1.10	±1.20	±1.50
40.0～50.0	±1.20	±1.50	±2.00
50.0～60.0	±1.60	±2.00	±2.50

Testing :

Chemical composition test,

Physical properties test,

Appearance defects inspection,

Ultrasonic flaw detection,

Eddy current testing.

Application :

Medical implants, medical instruments;

Aerospace, Industry, Navigation, artifical bones;

Textile printing and dyeing;

Sporting products;

Electroplating equipment;

Machining field, Automobile field;

Axis machining, the frame of the planes;

The equipment used in the sea wate

Features :

High tensile strength;

High corrosion resistance;

Low density, good thermal stability;

Non-ferromagnetic;

Good bio-compatibility;

High temperature and low temperature resistance;

High resistance to strong acid and strong alkali and so on.

What we can do for you?

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
