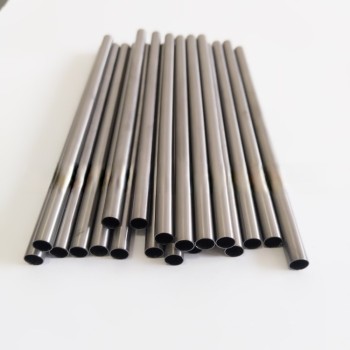

RO5400 tantalum tantalum tube in samll size with used in biomedical engineering
- group name
- Tantalum Pipes
- Min Order
- 1 kilogram
- brand name
- MMR Parts Processing | Custom Parts Manufacturing
- Nearest port for product export
- shanghai, tianjin, xi'an
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, Westem Union, Cash
- update time
- Tue, 04 Nov 2025 11:38:25 GMT
Paramtents
Grade R05200, R05400
Thickness 1mm - 5mm
Standard ASTMB521
OD 5mm-150mm
Length ≤3000mm
Surface polished surface，black surface
Specifications Industrial,Aerospace,Medical
Packging & Delivery
-
Min Order1 kilogram
Briefing
We are tantalum tubes manufacture. and we do customized size tantalum pipe. and our tantalum pipe price is good.
Detailed
AS a tantalum pipe supplier ,all of our tantalum tube we have been strictly inspected and the quality is guaranteed. and we can aslo produce tantalum capillary tube . The following are detail informations about our tantalum materials.
|
Grade |
R05200, R05400 |
||
Standard | ASTMB521 | ||
|
OD |
5mm - 150mm |
||
|
Length |
≤3000mm |
||
|
Thickness |
1mm-5mm |
||
|
Condition |
Hard, Semi-hard, Mild
|
||
|
Surface |
Polished surface, Black surface |
||
|
Specifications |
Aerospace, Medical, Industrial
|
||
Chemical composition
|
Element
|
C | O | N | H | F | Mo | Nb | Ni |
Si
|
Ti
|
W
|
|
RO5200(% Max)
|
0.01 | 0.015 | 0.01 | 0.0015 | 0.01 | 0.02 | 0.1 | 0.01 |
0.005
|
0.001
|
0.05
|
|
RO5400(% Max)
|
0.01 | 0.03 | 0.01 | 0.0015 | 0.01 | 0.02 | 0.1 | 0.01 |
0.005
|
0.001
|
0.05
|
Physical properties
|
Grade
|
Wall Thickness |
Tensile strength Min (MPa) |
Yield strength Min (MPa) (2%Residual strain) |
Elongation Min (%) (25.4mm Gage) |
RO5200(% Max),RO5400(% Max) | 1-5mm |
207
|
138
|
25
|
Tolerance (mm)
OD | OD tolerance | Wall Thickness tolerance |
5～20 | ±0.01 | ±5% |
21～25 | ±0.05 | ±5% |
26～40 | ±0.10 | ±5% |
|
41～60
|
±0.15
|
±5%
|
|
61～80
|
±0.20
|
±5%
|
81～150 | ±0.25 | ±5% |
Testing :
Chemical composition test，
Physical properties test，
Appearance defects inspection，
Ultrasonic flaw detection.
Application :
TElectron-beam melting，
Laboratory equipment，
Substitute for platinum，
Manufacturing super alloys，
Glass and ceramic industries，
Metallurgical，
Machinery processing，
Sputtering targets，
Aviation, aerospace industry,
Medical equipment, etc.
Features :
High melting point, low vapor pressure,
Good cold working performance,
High chemical stability, strong resistance to liquid metal corrosion,
Large dielectric constant of the surface oxide film.
What we can do for you?
- If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.
- contact us
